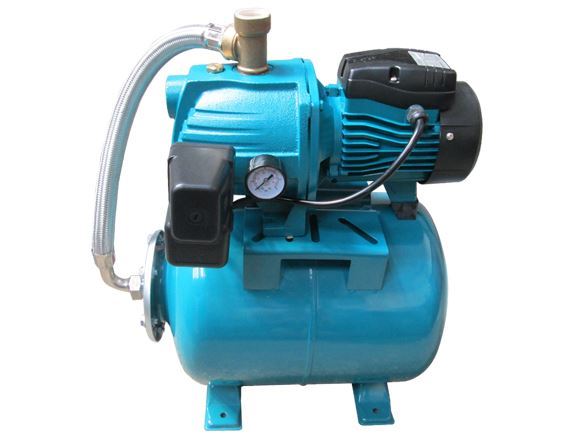

LEO PRESSURE TANK UNIT 2 50L 1HP

Features

• Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
• Suitable for lifting water from the well, sprinkling irrigation in garden, pressure boosting running water and supporting equipment etc.
• Cast Iron Pump Body
• Cast Iron Pump Body and support under special ant-rust treatment.

Specifications

• Brass impeller
• AISI 304 SHAFT
• Max. Liquid Temperature : +60°C
• Max. Suction : +9m
• C&U Bearing
• Motor with Copper Winding
• Built-in Thermal Protector for Single Phase Motor
• Insulation Class : F
• Protection Class : IPX4
• Max. Ambient Temparature : +40°C
• 180-240 V
• 60HZ
• QMAX : 10-60L / Min
• Hmax : 40m
• Hmin : 23m
• HP : 1.0
• 3400rpm
• IN : 6.0A
• KW : 0.75

Dimensions

• width=42.5
• height=69
• length=65

Weight

• 15.5 kgs
