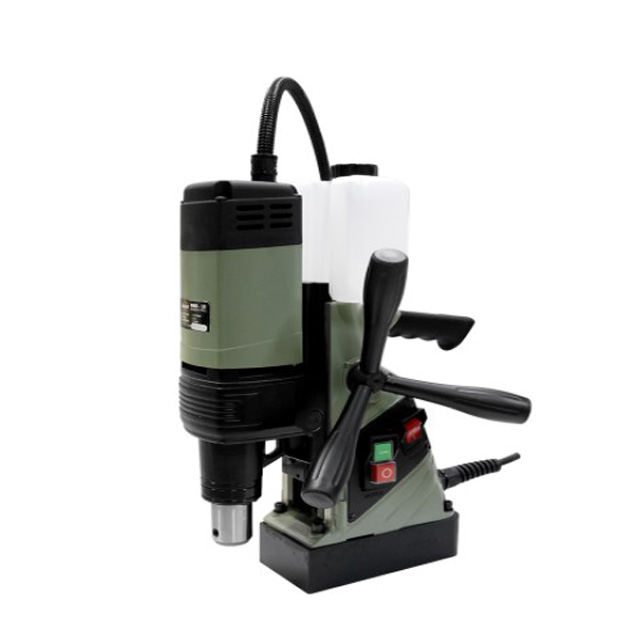

MaxSell Magnetic Drill, MMD-35
MaxSell Magnetic Drill
SPECIFICATION
| Rated Input Power | 1,100 W |
| Stroke | 120 mm |
| Magnetic Base Size | 167mmx84mmx44mm |
| Max Cutting Depth | 50 mm |
| Max Cutter Capacity | 35 mm |
| Max Motor Height | 95mm |
| Twist Drill Max Dia. | 13 mm |
| Countersunk Drilling | 10 – 35 mm |
| Load Speed | 450 rpm |
| Weight | 11 Kg |
PRODUCT FEATURES
- Tilted Air Inlets Design – for motor air inlet to prevent liquids or debris from falling inside of the motor.
- Two-way Sliding Rails – with wear resistant coating which increases its wear resisting properties to more than 2 times. Two way sliding rails, which make the motor stop at any position to prevent rig self decline and cutter damage.
- Longer Life Gears – internal self lubricating design ensures longer gear life.
- Automatic Internal Cooling System – External cooling ring design ensures longer gear life.
- Aeral Lifting Holes and Rope Holes – Overall design guarantee double protection for aerial personnel and equipment.
- Tilted Body Design – Ensures it overall rigidity and improved drilling accuracy.
- Magnetic Base Anti-Wear Design – Delays magnet-foot wear thus extend service life; with a maximum adhesion of up to 10,000N ensures safety and reliability during drilling operations.
Brand: MaxSell
