Picture of Panasonic Premium Inverter CS/CU-S28TKV

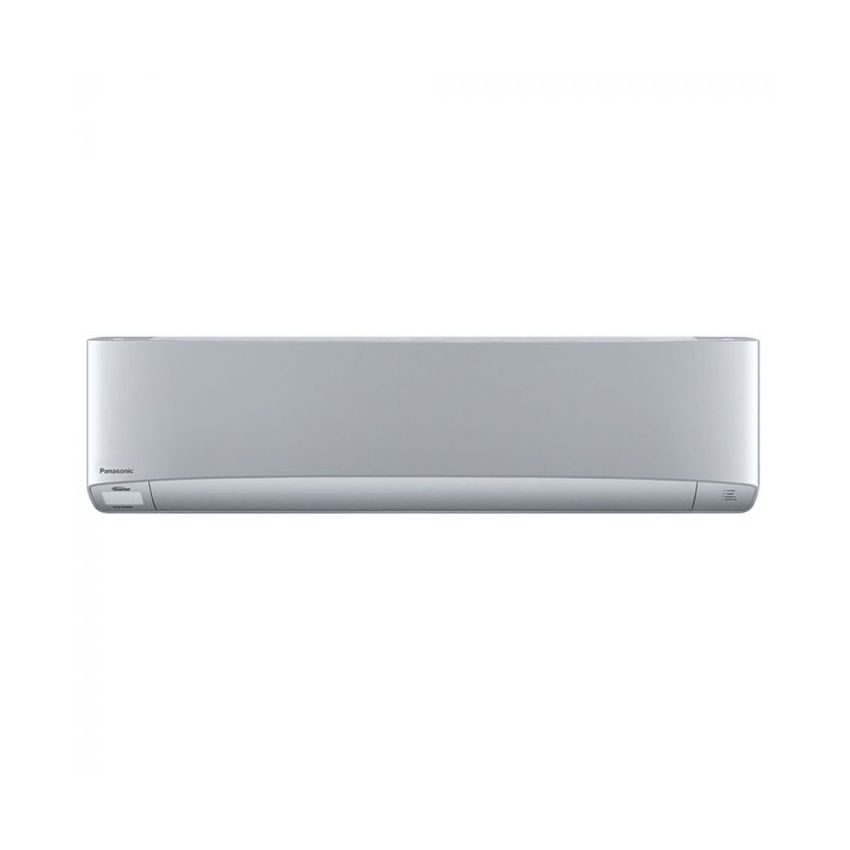

Panasonic Premium Inverter CS/CU-S28TKV

Be the first to review this product

PREMIUM INVERTER 3.0HP

₱79,999.00

Manufacturer: Panasonic

SKU: CS/CU-S28TKV

Availability:

In stock

Shipping

Delivery date 3-5 days

Qty:

+ -

Overview
Reviews
Contact Us

FEATURES:

Nanoe Technology
Aerowings
i-AutoX
Econavi
Inverter

SPECIFICATIONS:

MODEL	Indoor	60Hz	CS-S28TKV
MODEL	Outdoor	60Hz	CU-S28TKV
Cooling Capacity	(min-max)	Kw	7.80 (1.15-8.40)
Cooling Capacity	(min-max)	kJ/h	28,080 (4,140-30,240)
EER	(min-max)	kJ/Hw	10.40 (11.83-10.25)
EER	Voltage	V	220
Electrical Data	Current	A	12.6
Electrical Data	Powe Input (min-max)	W	2,700 (350-2,950)
Moisture Removal		L/h	4.6
Moisture Removal		(Pt/h)	9.7
Air Circulation	Indoor	m³/min (ft³/min)	21.7 (765)
Air Circulation	Outdoor	m³/min (ft³/min)	51.8 (1,830)
Noise Level	Indoor (H / L / Q-Lo)	Db (A)	49/38/35
Noise Level	Outdoor (H)	Db (A)	53
Dimensions	Heigt	mm	302 (795)
	Heigt	Inch	11-29/32 (31-5/16)
	Width	mm	1,120 (875)
	Width	Inch	44-1/8 (34-15/32)
	Depth	mm	236 (320)
	Depth	Inch	9-5/6 (12-5/8)
Net Weight	Indoor	kg (lb)	12 (26)
Net Weight	Outdoor	kg (lb)	57 (126)
Refrigerant Pipe Diameter	Liquid Slide	mm	ø 6.35
	Liquid Slide	Inch	1/4
	Gas Slide	mm	ø 15.88
	Gas Slide	Inch	5/8
Pipe Extension	Chargeless Pipe Length	m	10
	Maximum Pipe Length	m	30
	Maximum Elevation Length	m	20
	Additional Refrigerant Gas*	g/m	30
Power Supply			Outdoor
