Picture of Panasonic Standard Inverter CS/CU-PU12TKQ

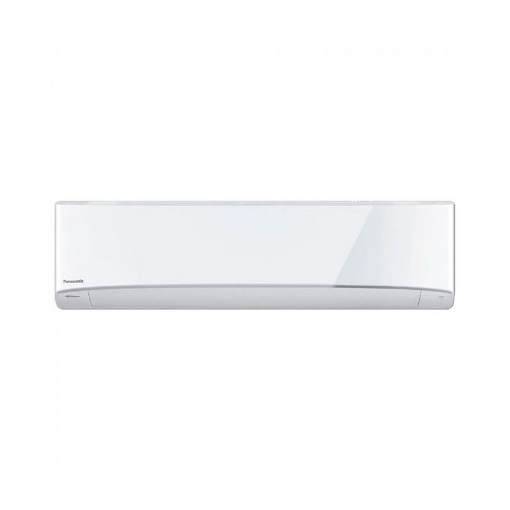

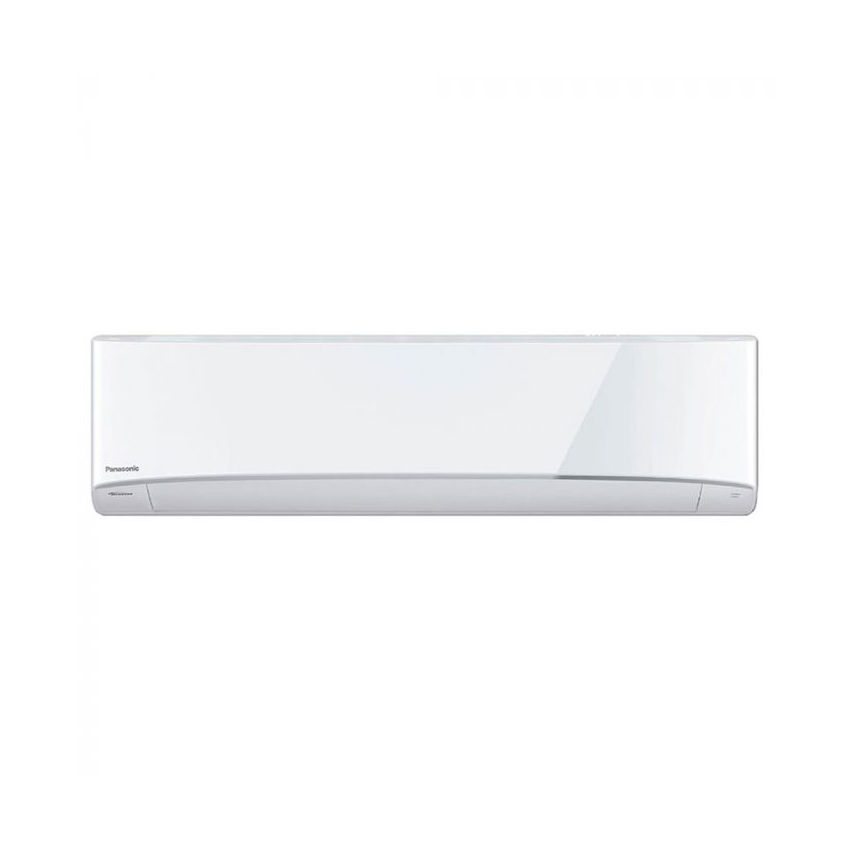

Panasonic Standard Inverter CS/CU-PU12TKQ

Be the first to review this product

STANDARD INVERTER 1.5HP

₱38,999.00

Manufacturer: Panasonic

SKU: CS/CU-PU12TKQ

Availability:

In stock

Shipping

Delivery date 3-5 days

Qty:

+ -

Overview
Reviews
Contact Us

FEATURES:

i-Auto
Inverter
Big Flap

SPECIFICATIONS:

MODEL	Indoor	60Hz	CS-PU12TKQ
MODEL	Outdoor	60Hz	CU-PU12TKQ
Cooling Capacity	(min-max)	Kw	3.06 (0.92-3.80)
Cooling Capacity	(min-max)	kJ/h	11,020 (3,310-13,680)
EER	(min-max)	kJ/Hw	13.44 (12.73-11.69)
EER	Voltage	V	230
Electrical Data	Current	A	3.8
Electrical Data	Powe Input (min-max)	W	820 (260-1,170)
Moisture Removal		L/h	1.7
Moisture Removal		(Pt/h)	3.6
Air Circulation	Indoor	m³/min (ft³/min)	10.8 (380)
Air Circulation	Outdoor	m³/min (ft³/min)	31.6 (1,120)
Noise Level	Indoor (H / L / Q-Lo)	Db (A)	38/28/25
Noise Level	Outdoor (H)	Db (A)	48
Dimensions	Heigt	mm	290 (542)
	Heigt	Inch	11-7/16 (21-11/32)
	Width	mm	799 (780)
	Width	Inch	31-15/32 (30-23/32)
	Depth	mm	197 (289)
	Depth	Inch	7-25/32 (11-13/32)
Net Weight	Indoor	kg (lb)	8 (18)
Net Weight	Outdoor	kg (lb)	25 (55)
Refrigerant Pipe Diameter	Liquid Slide	mm	ø 6.35
	Liquid Slide	Inch	1/4
	Gas Slide	mm	ø 12.70
	Gas Slide	Inch	1/2
Pipe Extension	Chargeless Pipe Length	m	7.5
	Maximum Pipe Length	m	20
	Maximum Elevation Length	m	15
	Additional Refrigerant Gas*	g/m	10
Power Supply			Outdoor
