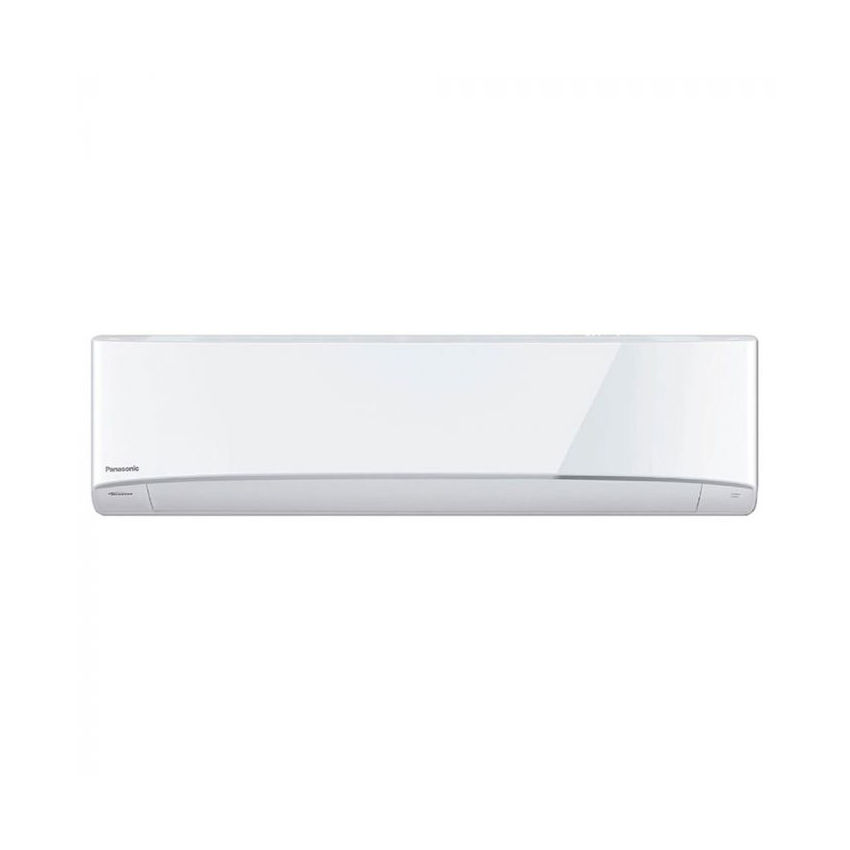

Picture of Panasonic Standard Inverter CS/CU-PU24TKQ

Panasonic Standard Inverter CS/CU-PU24TKQ

Be the first to review this product

STANDARD INVERTER 2.5HP

₱58,999.00

Manufacturer: Panasonic

SKU: CS/CU-PU24TKQ

Availability:

In stock

Shipping

Delivery date 3-5 days

Qty:

+ -

Overview
Reviews
Contact Us

FEATURES:

i-Auto
Inverter
Big Flap

SPECIFICATIONS:

MODEL	Indoor	60Hz	CS-PU24TKQ
MODEL	Outdoor	60Hz	CU-PU24TKQ
Cooling Capacity	(min-max)	Kw	5.87 (1.12-6.70)
Cooling Capacity	(min-max)	kJ/h	21,130 (4,030-24,120)
EER	(min-max)	kJ/Hw	11.55 (12.59-11.49)
EER	Voltage	V	230
Electrical Data	Current	A	8.5
Electrical Data	Powe Input (min-max)	W	1,830 (320-2,100)
Moisture Removal		L/h	3.2
Moisture Removal		(Pt/h)	6.8
Air Circulation	Indoor	m³/min (ft³/min)	20.7 (730)
Air Circulation	Outdoor	m³/min (ft³/min)	47.0 (1,660)
Noise Level	Indoor (H / L / Q-Lo)	Db (A)	46/37/34
Noise Level	Outdoor (H)	Db (A)	50
Dimensions	Heigt	mm	302 (695)
	Heigt	Inch	11-29/32 (27-3/8)
	Width	mm	1,102 (875)
	Width	Inch	43-13/32 (34-15/32)
	Depth	mm	244 (320)
	Depth	Inch	9-5/8 (12-5/8)
Net Weight	Indoor	kg (lb)	12 (26)
Net Weight	Outdoor	kg (lb)	40 (88)
Refrigerant Pipe Diameter	Liquid Slide	mm	ø 6.35
	Liquid Slide	Inch	1/4
	Gas Slide	mm	ø 15.88
	Gas Slide	Inch	5/8
Pipe Extension	Chargeless Pipe Length	m	10
	Maximum Pipe Length	m	30
	Maximum Elevation Length	m	20
	Additional Refrigerant Gas*	g/m	25
Power Supply			Outdoor
