FEATURES:
- This invisible hinge system creats uninterrupted flush-faced surface on the hinge side of the furniture door and generate a harmonic interior manner.

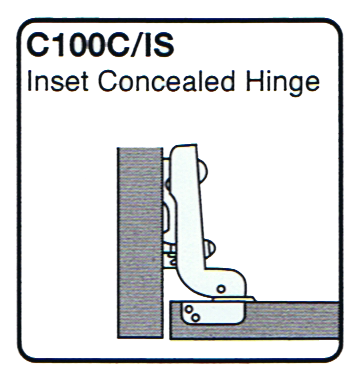

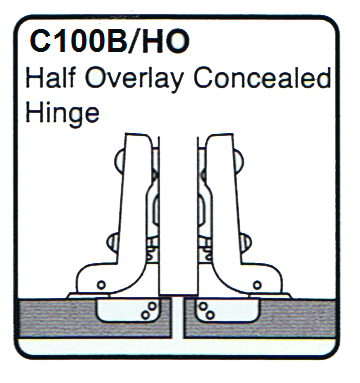

- Three hinge styles to fit for different door structures
- Fully concealed flush looking apperance
- Soft closing, snap-on design and cam adjustable
- Adjustable in 3 different directors (1 mm)
- Up and Down
- Left to right
- In and out
SPECIFICATIONS:
Opening angle: 100°
Hinge Cup:
Depth: 10 mm
Dimater: 35 mm
Door Thickness: 14 - 24 mm
Drilling Distance on Door: 3 - 7 mm
